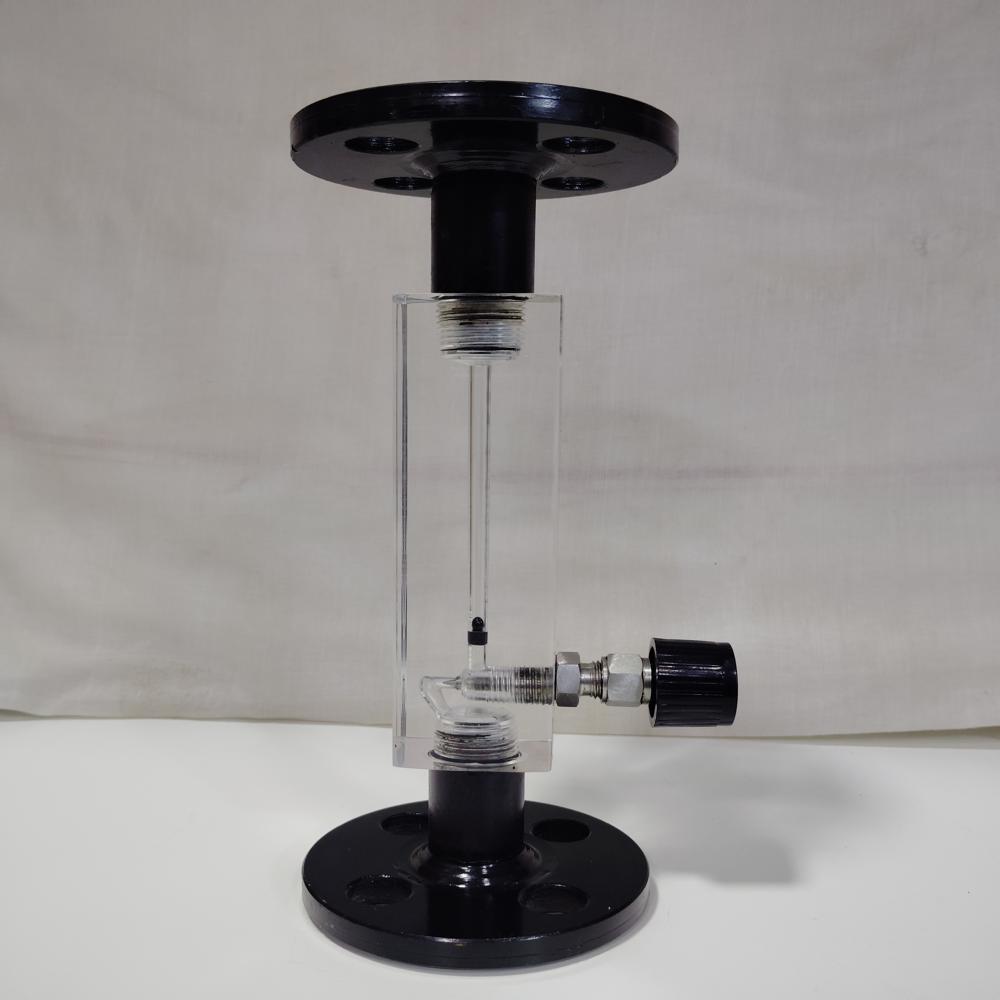

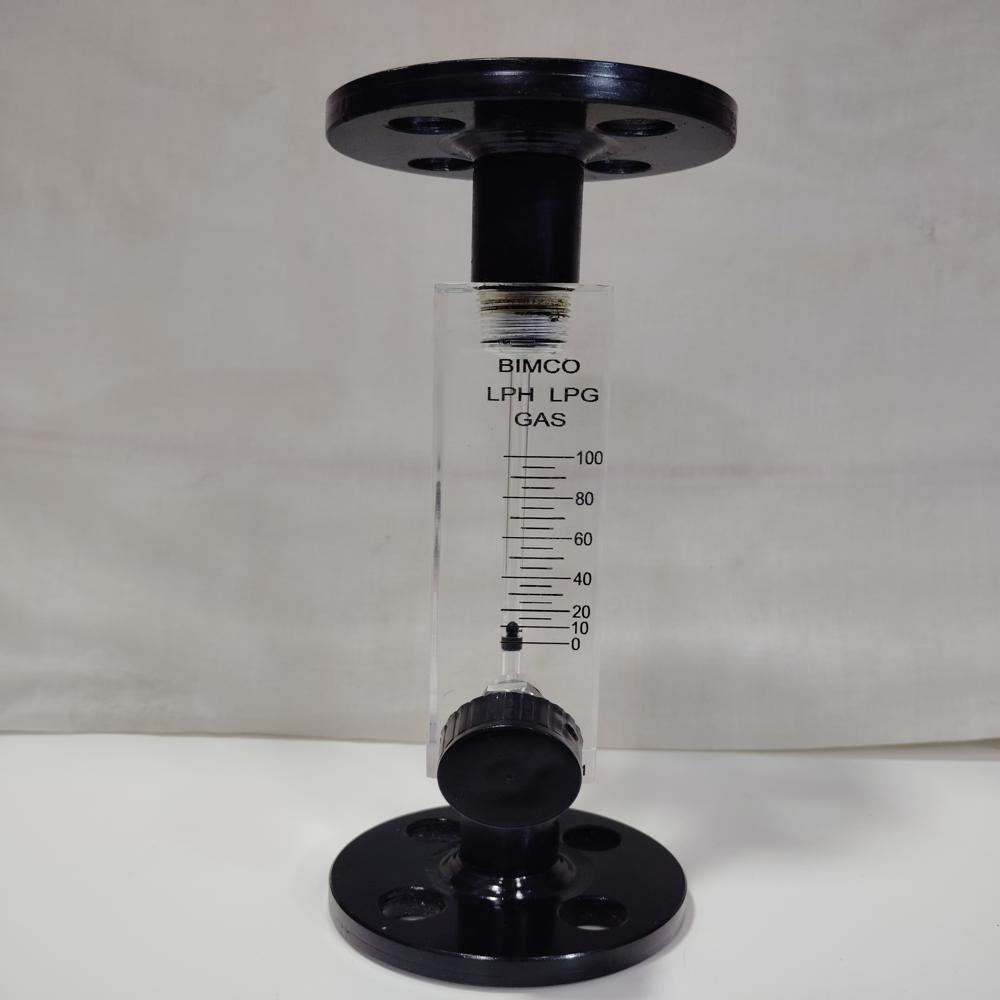

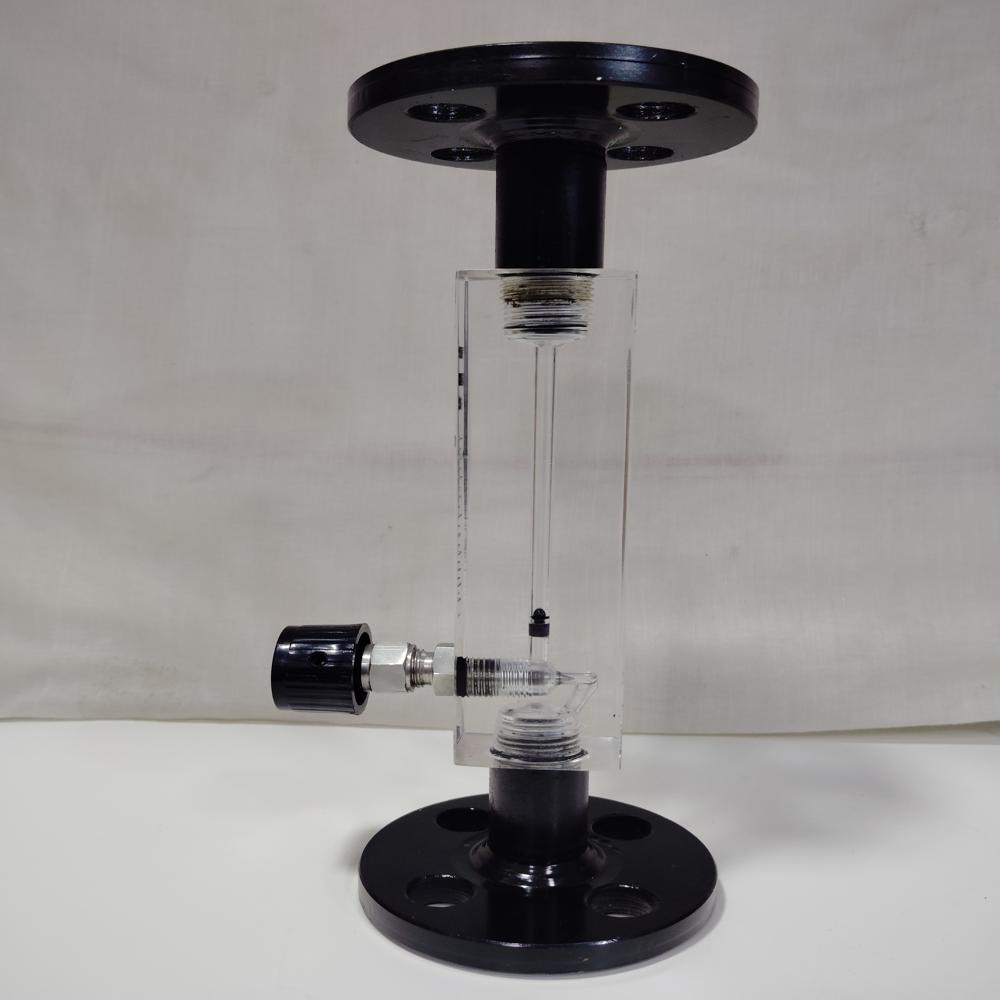

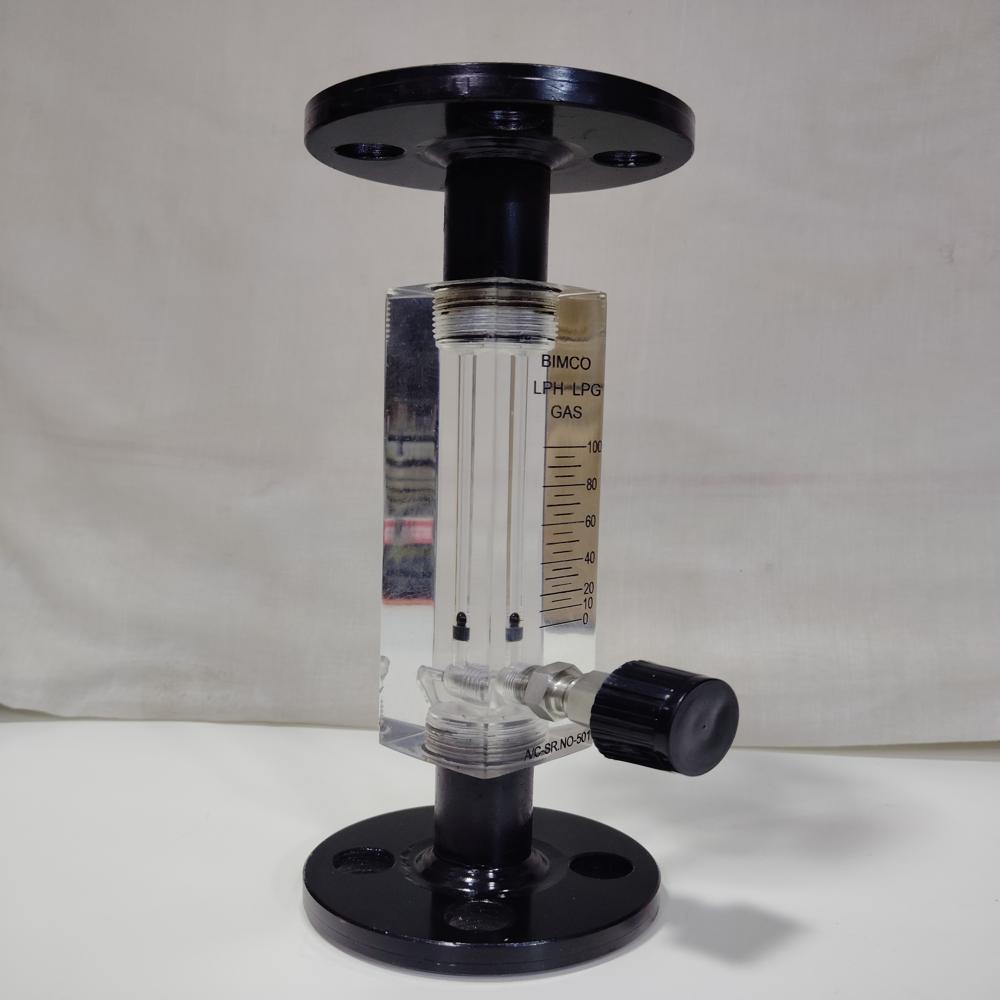

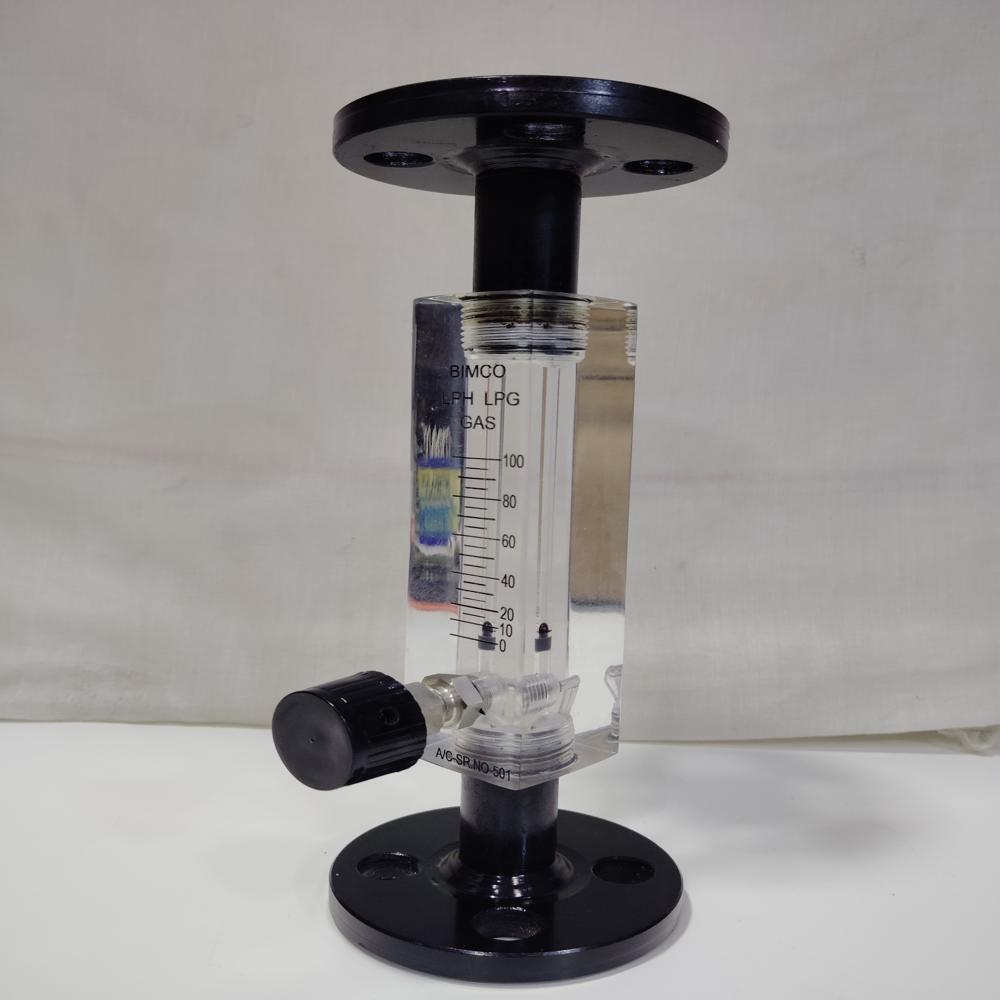

ROTAMETER WITH FLANGES

ROTAMETER WITH FLANGES Specification

Equipment Type
Flow Meter

Automation Grade
Manual

Usage
Industrial/Lab

Machine Weight
1.5kg Kilograms (kg)

Control Mode
Manual

ROTAMETER WITH FLANGES Trade Information

Minimum Order Quantity
1 Number

FOB Port
MUMBAI

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Per Month

Delivery Time
4 Week

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
BOX

Main Export Market(s)
Africa, Asia, Middle East

Main Domestic Market
All India

Certifications
ISO 9001 : 2015

About ROTAMETER WITH FLANGES

A rotameter is a device used to measure the flow rate of liquids or gases in a closed tube. It belongs to the class of variable area flow meters.

Working Principle

Based on gravity and fluid dynamics.
Fluid enters a tapered tube, pushing a float upwards.
The float rises until the upward force of the fluid equals the downward force of gravity.
The height of the float is proportional to the flow rate, which can be read on a calibrated scale.

Key Components

Transparent, Durable Construction

Constructed from high-quality acrylic, the rotameter features a transparent body that allows for immediate, easy visual monitoring of water flow. The sturdy material ensures long-term durability while maintaining precise measurement integrity even in intensive industrial environments.

Manual Operation and High Accuracy

The equipment operates using a manual control mode, and the analog-only display provides accuracy within 2%. Users can easily adjust and monitor the flow without complex configuration, making this rotameter reliable for consistent performance in diverse applications.

Flexible Application & Easy Installation

With BSP connectivity and flange mounting, this rotameter is suitable for a wide range of installation settings. It supports a temperature range up to 50C and is perfect for measuring water in industrial and lab environments. The device is lightweight, at 1.5 kg, ensuring simple integration into existing systems.

FAQs of ROTAMETER WITH FLANGES:

Q: How do I install the rotameter with flanges in my system?

A: Install the rotameter by connecting it to your existing plumbing using the BSP flanged connectors. Secure the unit in a vertical position for accurate measurements, and ensure it is integrated into the section of the water line where flow monitoring is required.

Q: What is the main benefit of using this acrylic rotameter for water measurement?

A: The primary benefit lies in its clear, transparent design that provides a real-time, visual indication of flow rates, along with reliable accuracy and easy manual adjustments. Its durable construction ensures optimal performance in both industrial and laboratory settings.

Q: When should I choose a rotameter with manual operation and analog display?

A: Opt for this model when you require straightforward operation, minimal setup, and dependable analog readouts. Its ideal for situations where frequent electronic calibration is unnecessary and manual control is preferred.

Q: Where can this rotameter be used most effectively?

A: This rotameter is particularly effective in water measurement applications found in industrial processes and laboratory testing, where accurate, real-time flow monitoring is essential. Its robust design makes it a suitable choice for challenging environments.

Q: What process does the rotameter use to measure water flow?

A: This rotameter assesses water flow by allowing liquid to pass through a vertical, tapered tube, where a floating indicator rises in proportion to the rate of flow. The analog display shows the precise flow measurement for easy monitoring.

Q: How do I maintain accuracy with this rotameter?

A: Maintain accuracy by ensuring the device is properly installed in a vertical position, remains clean from debris, and used within the specified temperature and power ranges. Regular visual inspection and basic maintenance will support reliable performance.
