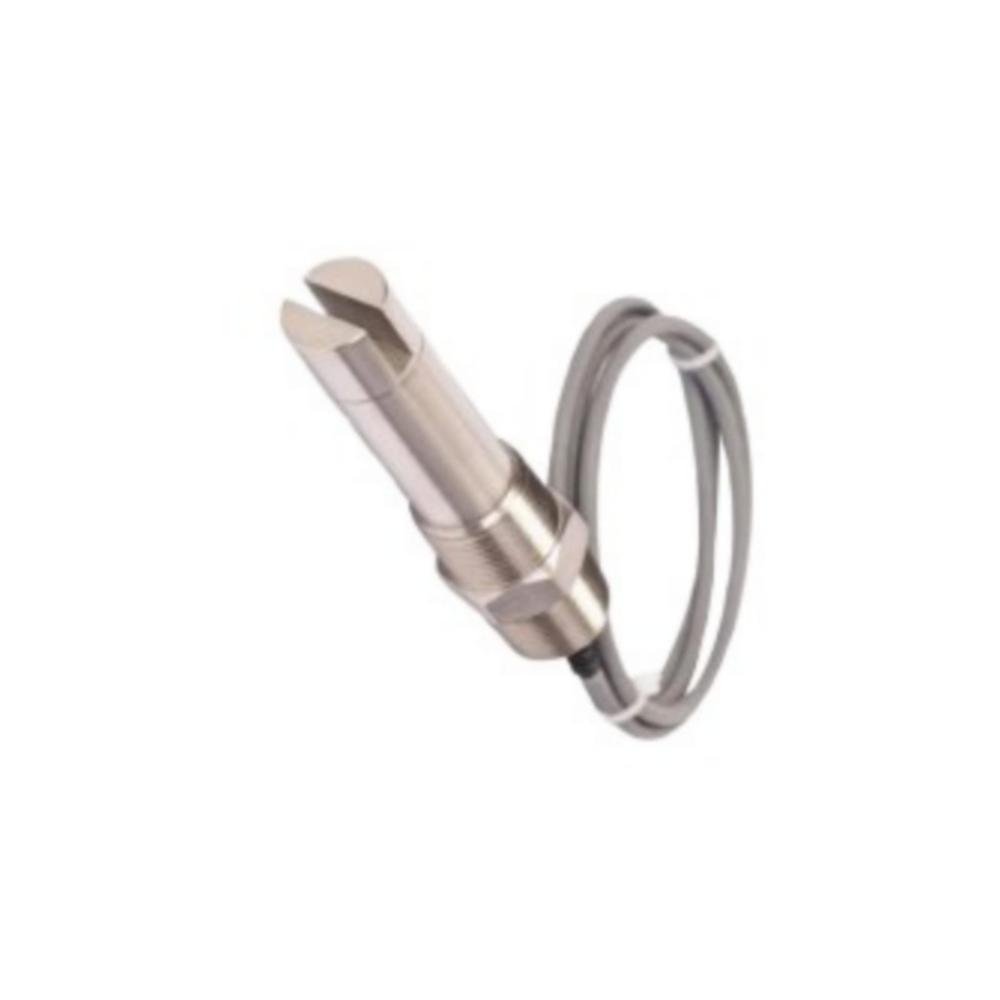

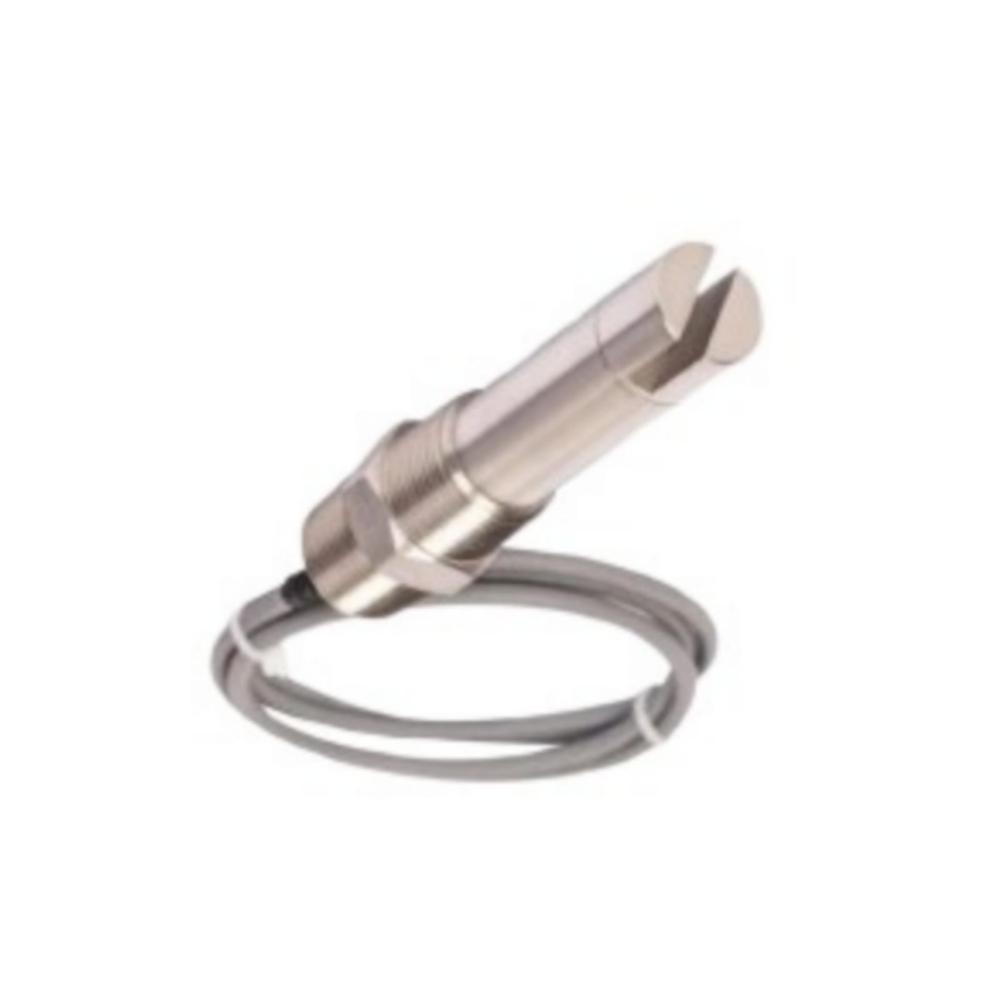

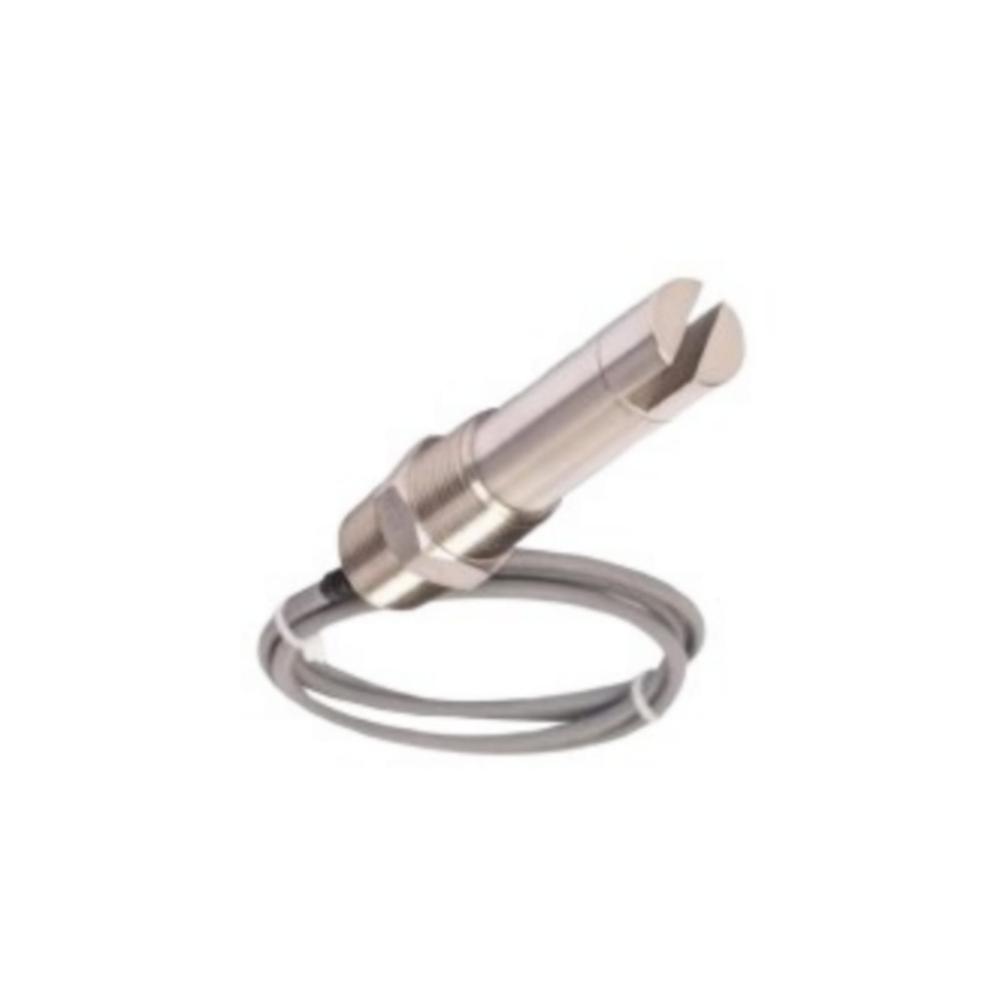

ULTRASONIC LEVEL SWITCH

About ULTRASONIC LEVEL SWITCH

An Ultrasonic Level Switch is a device used to measure the level of a substance (liquid or solid) within a container or tank using ultrasonic waves. It works on the principle of emitting high-frequency sound waves and measuring the time it takes for the sound waves to reflect off the surface of the material (such as a liquid or solid) and return to the sensor. Based on this time, the device calculates the distance to the surface and, consequently, the level of the material.

Key Features of Ultrasonic Level Switches:

1. Non-contact Measurement: Since ultrasonic level switches dont physically touch the material, they are ideal for measuring levels in corrosive or hazardous substances.

2. High Accuracy: Ultrasonic sensors can measure levels with high precision, often down to millimeters, depending on the application.

3. Wide Application Range: They can be used for both liquids and solids in tanks, silos, and other containers.

4. Easy Installation: These switches are often installed at the top of the container or vessel, offering flexibility in positioning.

5. Continuous or Point Measurement: Some ultrasonic level devices can offer continuous level monitoring, while others only provide on/off point-level detection.

6. Remote Monitoring: In many modern systems, data from ultrasonic level switches can be transmitted to a remote control system, allowing for monitoring without direct interaction with the tank.

Working Principle:

1. Emission of Ultrasonic Waves: The sensor emits ultrasonic pulses that travel through the air toward the surface of the material.

2. Reflection: When these sound waves hit the material, they are reflected back to the sensor.

3. Time-of-Flight Calculation: The sensor measures the time it takes for the ultrasonic waves to return. Using the speed of sound and the time-of-flight, the distance to the surface of the material is calculated.

4. Level Determination: The device then converts the distance measurement into a corresponding level measurement.

Advantages:

• No Moving Parts: With no moving components, ultrasonic level switches are less prone to wear and tear.

• Low Maintenance: These devices generally require very little maintenance, reducing operational costs.

• Safe: As it doesnt need to make contact with the material, its safer for use with hazardous or toxic substances.

• Versatile: Works in a variety of applications, including chemical, pharmaceutical, water treatment, and food processing industries.

Applications:

• Liquid Storage Tanks: Used to measure the level of water, chemicals, oils, and other liquids.

• Silos and Hoppers: Measure the level of bulk solids like powders, grains, and pellets.

• Water Treatment Plants: Monitoring levels of water in various stages of treatment.

• Fuel or Chemical Tanks: Used to detect and monitor the level of fuels or chemicals in containers to avoid overflows or shortages.

Limitations:

• Temperature and Environmental Effects: Extreme temperatures, humidity, or heavy vapors may affect the accuracy of ultrasonic sensors.

• Surface Characteristics: Very smooth or highly reflective surfaces may cause issues with signal reflection and measurement accuracy.

Applications Across Industries

The ULTRASONIC LEVEL SWITCH is well-suited for use in chemical processing, water treatment plants, and food & beverage industries. Its non-contact sensing technology allows it to detect liquid levels without direct contact, reducing wear and contamination risks. Designed for ease of installation and integration, it provides a high level of reliability in harsh or sensitive environments.


Reliable Performance in Varying Conditions

With a temperature tolerance ranging from 20C to 43C and mechanical life of up to 1 year, this level switch is engineered to function optimally under diverse operational scenarios. The built-in electronics ensure stable readings even when fluctuations in current and voltage occur, offering consistent, maintenance-friendly monitoring.
